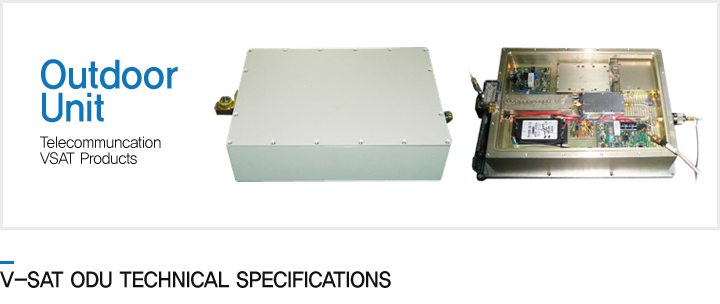

Section Parameter Specification Comment
Receiver 1. Receiving Frequency 3.625 ~ 4.2GHz C-BAND
14~14.5GHz KU-BAND
30.085 ~ 30.885GHz KA-BAND
2. Receiving IF 70MHz    +/-18MHz, +/-36MHz
140 MHz  +/-18MHz, +/-36MHz
3. LNA Input Range -30dBm ~ – 80dBm  　
4. Gain 40dB,48dB,52dB 　
5. Gain Flatness +/-1.5dB, +/-1dB 　
6. Gain Variation at temperature 3dB 　
7. Receiver Noise Figure 5dB 　
8. Spurious 50dBc 　
9. Image Rejection 40dB 　
10. Step size 1MHz, 2.5MHz 　
11. Gain adjustment 30dB 1dB step
12. Phase noise -60dBc/Hz 100Hz
-70dBc/Hz 1KHz
-80dBc/Hz 10KHz
-90dBc/Hz 100KHz
-100dBc/Hz 1MHz
13. RF, IF interface 50 ohm N-TYPE FEMALE
14. In/Out VSWR 1.5 　
Transmitter 15. Transmitting Frequency 5.85 – 6.725GHz C-BAND
12.25 ~ 12.75GHz KU-BAND
20.355 ~ 21.155GHz KA-BAND
16. Transmitting IF 70MHz    +/-18MHz, +/-36MHz
140 MHz  +/-18MHz, +/-36MHz
17. Gain 40dB 　
18. Transmitting Power (@ P1dB)　 33dBm 53dB Gain
37dBm 57dB Gain
40dBm 60dB Gain
19. Gain Flatness +/-1dB, +/-1.5dB 　
20. Gain Variation at temperature 3dB 　
21. Spurious (@ 13 dBm output) 50dBc 30dBc @ P1dB output
22. 2-tone Intermodulation 35dB 　
23. RF interface 50 ohm wave guide
24. IF interface 50 ohm N-TYPE FEMALE
25. Phase noise -60dBc/Hz 100Hz
-70dBc/Hz 1KHz
-80dBc/Hz 10KHz
-90dBc/Hz 100KHz
-100dBc/Hz 1MHz
26. In/Out VSWR 1.5 　
Other things 27. RF Isolation for Rx/Tx 80dB 　
28. IF input/output power -20 ~ 0dBm TX/RX
29. DC Power 110/220 AC 12V DC
30. Monitor Connector Type Optional 　
Operating Condition 31.Temperature -30 - 60 　
32. Humidity 95%
